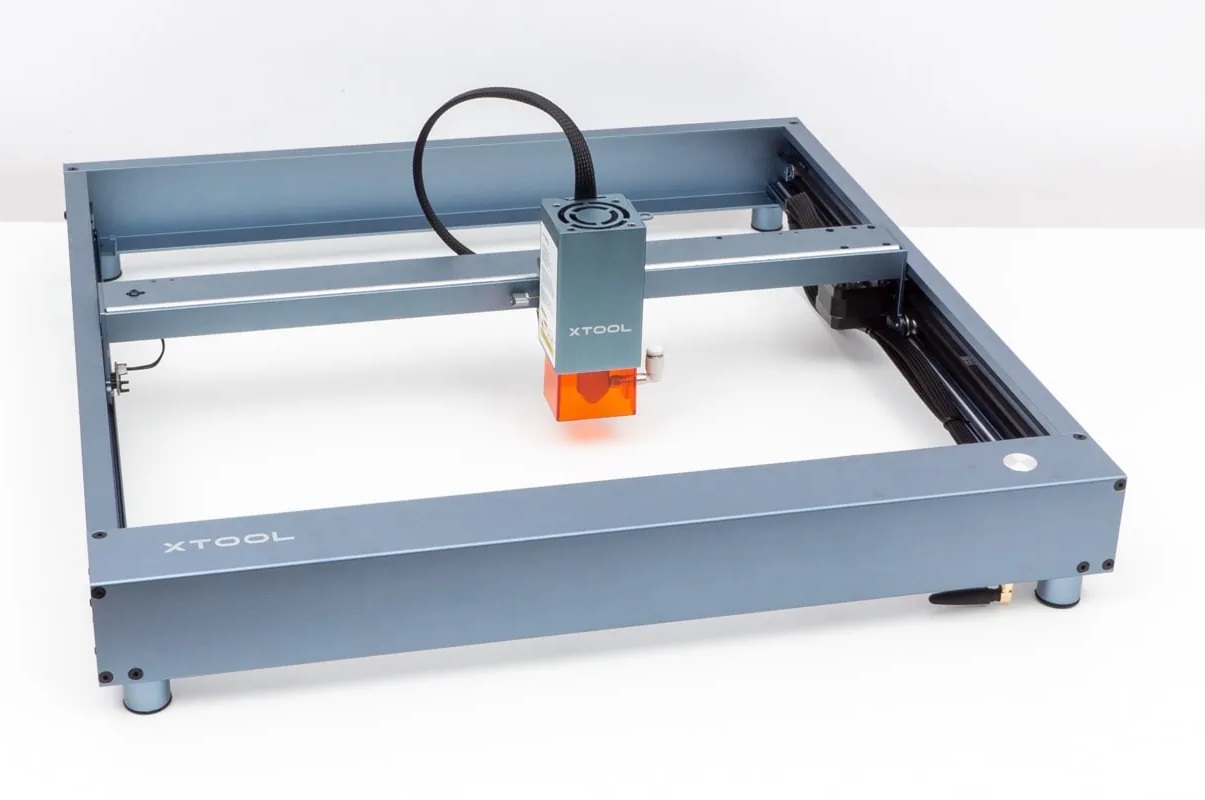

xTool D1 Pro engraver/cutter

Make/Model

  • xTool D1 Pro
    • with RA2 rotary axis and extension kit

Cost To Use

  • $0.10 per per minute

Notes

  • You MUST BE TRAINED before using it alone. Ask for help from those who have been trained, and contact the Area Captain to set up an appointment for your training.
  • WARNING: Laser-safe safety glasses MUST be worn by EVERYONE IN THE VICINITY when this laser is in operation.
  • WARNING: Due to its open-frame design, this laser may be somewhat more prone to creating an OPEN FLAME which will damage the laser and potentially ignite surroundings.

Specs

  • Machine power: 60 W
  • Laser electric power: 40 W
  • Laser module output power: 10 W
  • Laser spot:  0.08 * 0.08 mm (0.003 * 0.003 inch)
  • Wavelength: 455 + 5 mm
  • Routing speed: 24,000 mm/min
  • Working speed:400 mm/s
  • Working area: 432 * 406 mm (17 * 16 inches)
    • Note: The extension kit will double that area. It is on hand, awaiting installation and testing.
  • Max workpiece height (with risers):  50 mm + X * 45 mm (each set riser height column)
  • Voltage input: 100-240V 50-60 Hz
  • Voltage output:  12V 3A 36W
  • Connecting interfaces: USB / Wi-fi / TF card
  • Certification: FCC / FDA / CE
  • Oprating sytems: Windows / macOS / Androis / iOS
  • Control software: Xtool Creative Space (XCS) / LightBurn
  • File types: SVG / DXF / JPG / JPEG / PNG / BMP / TIF / CR2, etc
  • Weight: 5 kg
  • Size (L * W * H): 600 * 590 * 150 mm (23.6 * 23.2 * 5.9 inches)
  • 0.06 * 0.08mm super fine spot focus
  • Engraving/cutting accuracy: within 0.004 inches
  • Motion accuracy: 0.01 mm
  • Limit switches: +/- X and +/- Y axes
  • Flame sensor: built-in

Accessories Available

  • RA2 4-in-1 rotary axis for engraving cylindrical objects
  • extension kit for doubling the working grid area
  • honeycomb grid
  • riser kit
  • 6 pairs of laser-safe safety glasses
  • software
    • xTool Creative Space (XCS) – ,
    • LightBurn (trial version available) – , ,
    • ImageR – tool for preparing images for lasering
      • online –
      • offline – ,

Recommended Settings

Materials Information

Allowed materials

  •  Engraving:
    • plywood
    • solid wood
    • leather
    • metals
    • paper
    • certain plastics, such as
      • acrylic
      • fluoropolymers
      • delrin
      • mylar
      • polyimide
      • polyester
      • polystyrene
      • polyurethane
      • polymethylmethacrylate
      • PET
    • fabric
    • rock
    • glass
    • ceramics
  • Cutting:
    • certain plastics, such as
      • acrylic
      • fluoropolymers
      • delrin
      • mylar
      • polyimide
      • polyester
      • polystyrene
      • polyurethane
      • polymethylmethacrylate
      • PET
    • paper
    • leather
    • wood

PROHIBITED materials

  • certain plastics, such as
    • ABS
    • PVC
    • Carbon Fiber
    • Polycarbonate
    • HDPE

IMPORTANT! If unsure about a material, contact the Area Captain prior to using it!

Current Status

  • Available

Ownership

  • On loan from Rob Wise

History

  • 08/24/22 – Ordered
  • 03/20/23 – Available
